Half closed cabin electric cargo delivery tricycle

Short Description:

1.This model is very popular in China domestic market for express use.
2.Y26 could carry 500kg goods and could load goods above the carriage.
3.The front windshield with rainwiper for raining days
4.With 3 speed level. Max speed could reach 30km/h
5.With LCD display
6.Could equip with two pack 60V32Ah lead acid battery or lithium battery for more range per charge.
7.When loading container,we can packed into steel frame 32pcs/40 HC container, 46pcs fully disassembled into 40HC container.


Product Detail

Product Tags

Product Specification

Model Y26
Overall Dim (mm) 2900×1050×1720
Cargo box size(mm) 1500×1050×1050
Weight(Without battery/kg) 180
Rated Loading Capacity(kg) 340kg
Range/Charge (km) 60
Max Speed(km/h) 25
Motor 60V1000W1200W Differential Motor with hand gear shifting
Controller 60V50A24 tubes
Front fork Φ37
Front Wheel 3.5-12
Rear Wheel 3.75-12
wheel base(mm) 2030
wheel track(mm) 910
Min ground clearance(mm) 130
Grade ability(%) 20% empty load, 12% full load
Brake Front drum,rear drum
Charging time 6-8 h
Batteries 60V32Ah/38Ah

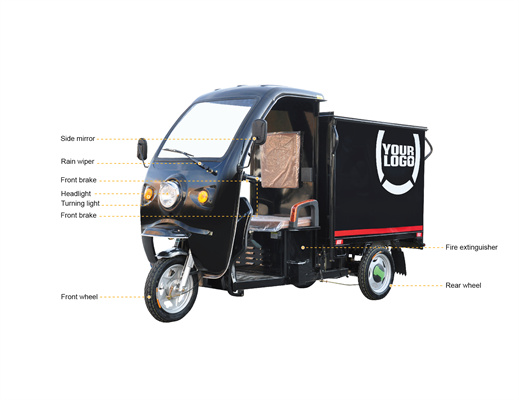

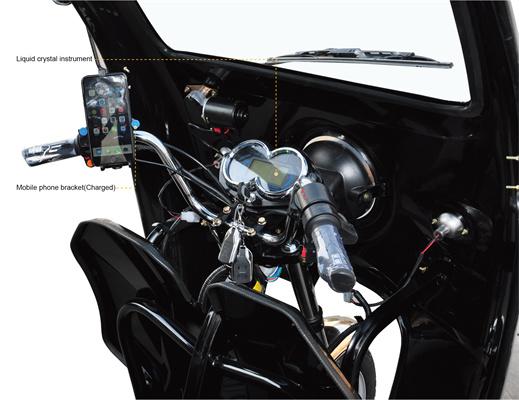

配置图-03 配置图-04



Y26 is a cargo pick up model for goods delivery for both family use and company use.  it's very popular in China market and used by many famous logistic company to deliver goods in

the city and country side. you can make your logo outside the carriage box with stickers or make advertisements.  we provide service of logo making but of course require Min.order for

this.

We can install extra functions in the tricycle. such as phone holder,Bluetooth Speaker,seat belt ...etc. you can also tell us what your are interested in ,so that our engineer could evaluate

and design based on your needs.

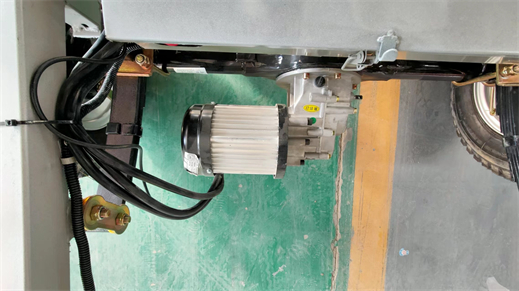

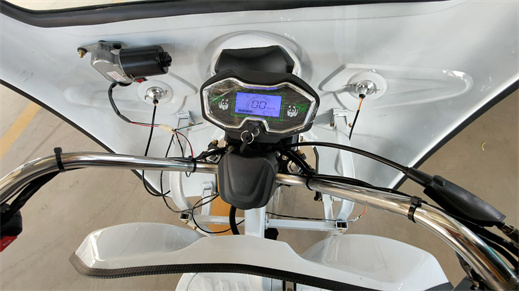

14微信图片_20221012170041

you can customized motor engine configuration based on your road driving condition. For city road,650W,800W is enough. we provide 1000W,1200W for rough road.







details

Packing & Shipping

We have a professional loading team to ensure safe and accurate packing and loading.Reasonably help you make plans for the product quantity and give scheme for your container loading.
