| Model | TDM03Z |
| Frame | 20″Steel, Folding |
| Tyres | 20*1.75 |
| Rims | Aluminum Alloy |
| Front brake | Disc Brake |
| Rear brake | ” Expansion Brake |
| Motor | 36V250W Brushless Motor |
| Battery | 36V8Ah Li-ion Battery |
| Charger | Input:AC 100V-240V 100W 50/60Hz |
| Charger | Output:42V-2.0A |
| Charger time | 2-4 Hours |
| Controller | 36V Intelligent Brushless Controller |
| Display | LCD |
| PAS | 1:1 |
| Derailleur | Shimano 6 Speed |
| Max. Speed | 25km/h |
| Distance Range | 40km full electric，≥80km by PAS |
| Max. Load | 120kg |
| N.W/G.W | 23kg/27kg (Including Battery) |
| Carton Size | 1300×250×820mm |
| Color | Optional |
| Container Loading | 180 Sets By 20GP；400 Sets By 40HQ |
Foldable Small Size Valet Mountain Bike
A 20 inch small folding bicycle can be folded and put in the trunk of the car. It is suitable for driving to the countryside, or for valet driving workers.if use PAS system ,can ride more than 80km, 40 km with full electric power.
Light Weight Child' Bike
The total weight of this bike only 27 kg include battery and charger,it's very easy for an adult to move it into the car or take it to the house. Due to its light weight and small size, the bicycle can also be used as an electric bicycle for children.

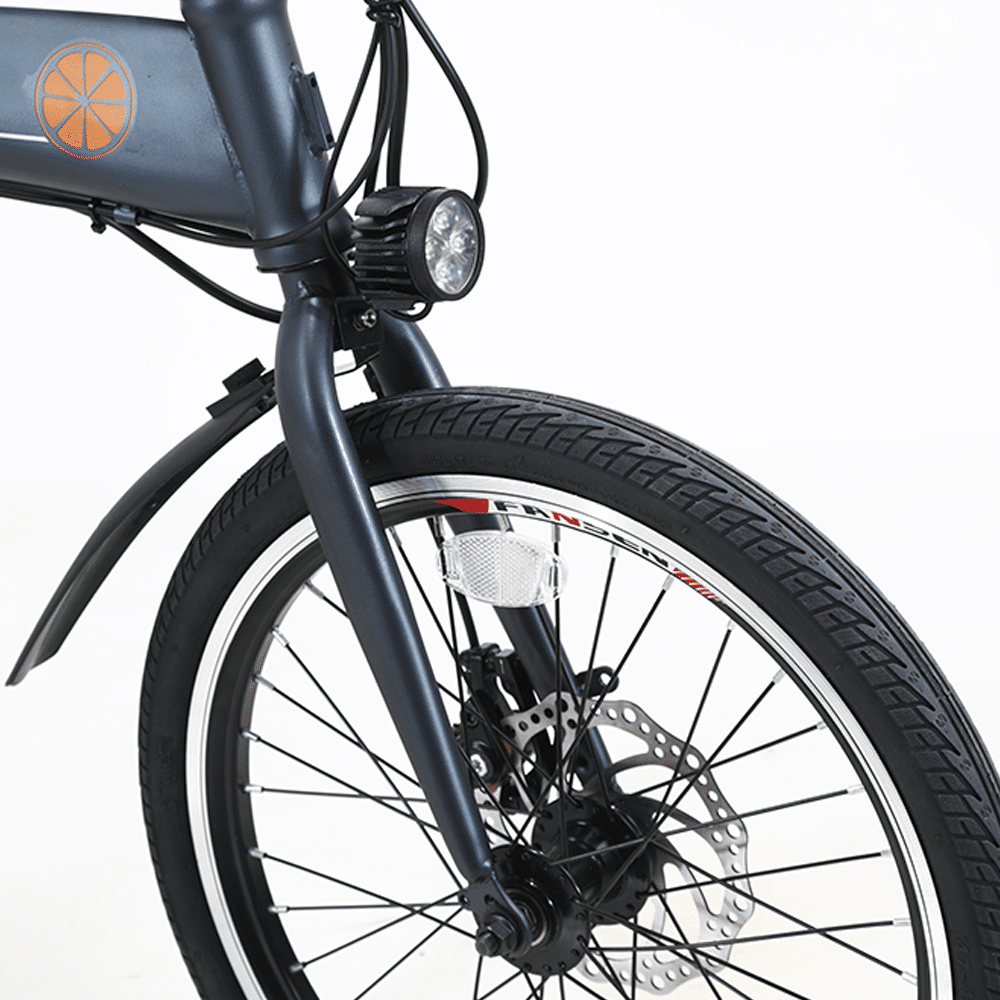

Equipped with front and rear disc brakes, the brake is more flexible and the effect is better.20 inch mountain tire, aluminum alloy rim. Highlight LED front light.
Equipped with Shimano 6-speed transmission, big brands have more quality assurance.It is easier to ride with variable speed.

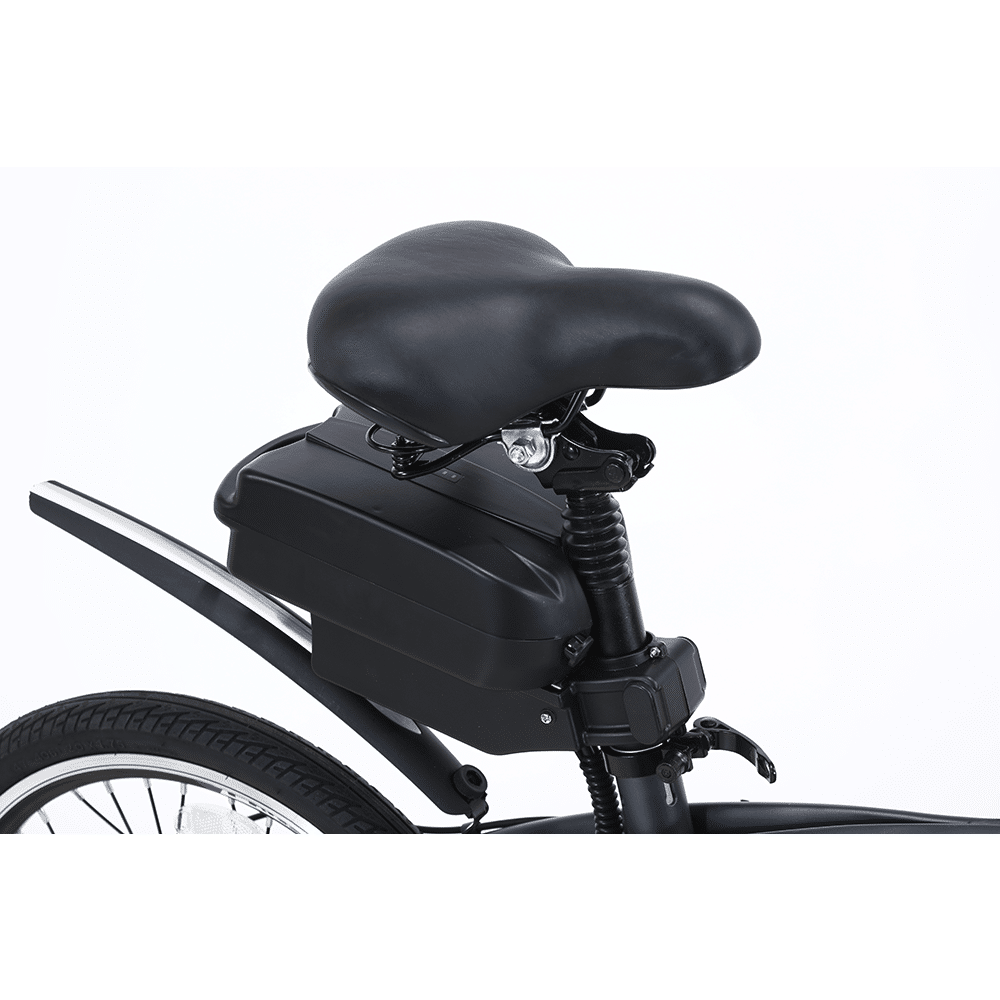

Adjustable saddle, with a small lithium battery box behind the saddle. Remove the battery case for portable charging. The folded bicycle is very small, so it only takes a small space to put it in the boot.
The conclusion is that the DC voltage output by the charger with good quality is very stable. Therefore, during the whole charging process of the battery, touching the battery surface with your hand will not feel hot, but will only have a warm feeling. During charging, the battery is hot, which may easily lead to the deformation of the electrode plate in the battery, the turbidity of the electrolyte, and finally the battery is damaged in a short time. The so-called damage is that the storage capacity of the battery is getting lower and lower, and even lead to battery explosion in serious cases. Therefore, it is recommended that you choose a high-quality battery charger, which ensures safety and is economical.
Yes, we are a factory with more than 40 years history and also a trader. Very experienced.
Sample first is available and we have some models in stock for you for quick shipment, please contact us for details.
We have different guarantee period for different components. please contact us for details.
We accept T/T,L/C, Alibaba trade assurance, cash
Confirm the orders, pay the deposit. Arrange production (Common products without any change usually 15 to 20 days.). pay the balance, shipment.
