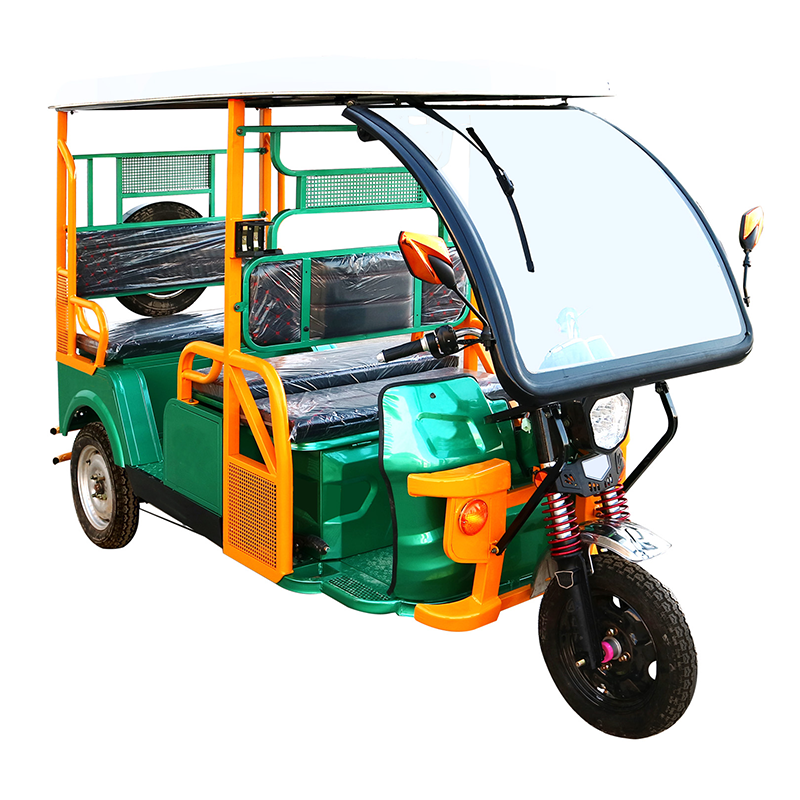

Electric Auto Rickshaw Adults with 5-6 passengers

Short Description:

1. Multi purpose electric tricycle for carrying passengers

2. suitable for family use for short distance travel or for taxi rent

3. popular electric passenger tricycle tuk tuk for tourism.

4. could load 5-6 persons, equip with extra tire and bus handle,we can also equip with seat belt and other equipment for your customized requirement.

5.powered by battery (lead acid,water battery or lithium). range from 90km-150km per charge.


Product Detail

Product Tags

Product Specification

Picture Specification
 electric tuktuk 型号Model H1
整车尺寸/Overall Dim (mm) 2800X1000X1700
车厢尺寸/Cargo box size(mm) /
车重/Weight(Without battery/kg) 200Kg
载重Rated Loading Capacity(kg) 500kg
续航里程/Range/Charge (km) 45-120
最大时速/Max Speed(km/h) 28
电机/Motor 48V/60V1000W Differential Motor
控制器/Controller 48V18 tubes 40A
前减震/Front fork Φ37
前轮/Front Wheel 3.00-12
后轮/Rear Wheel 3.00-12
轴距/wheel base(mm) 2030
轮距wheel track(mm) 910
选配/Extra Faction choice Gear shift,seat belt,extra tire,LED light,Awning,USB
爬坡能力/Grade ability(%) 20% empty load, 12% full load
刹车/Brake drum
充电时间Charging time 6-8 h
电池Batteries 48V/60V32Ah/45Ah/100Ah/120Ah

detail

storage box

Convenience equipment

Optional speaker, radio, storage box and other multi-function configurations. The simple storage box is used to place water cups, tools and other items in the internal medicine.

tuk tuk
front tire with brake
tire

Front Wheel

We have 3 options for the front wheel, with drum brake ,disc brake and without brake. if without brake in the front wheel,we equip with Interchange hub so that the three wheels in the tricycle could achieve the goal of universal.Reduce the trouble of spare parts selection.

Solar Panel

This model can be equipped with solar panels, which is suitable for countries and regions with long and strong sunshine. The solar panel is more efficient and energy saving. Meet the requirements of green new energy and environmental protection.

electric rickshaw with solar panel

The solar panel can supply power for the battery and help the electrical components run. It is very suitable for Africa, Southeast Asia and other regions with long and strong sunshine.

tuk tuk awning

Awning

The tuk tuk  is equipped with tarpaulin, which can protect the sun and rain. When not in use, it can be rolled up and fixed on the vehicle, and put down when in use. The rear windows are equipped with transparent rain curtains to ensure a clear view. The spare tire is also equipped with a spare tire cover, which is convenient and beautiful.

extra tire
3
Are you a factory or trader?

Yes, we are a factory with more than 40 years history and also a trader. Very experienced.

Is sample first available? Do you have models in stock?

Sample first is available and we have some models in stock for you for quick shipment, please contact us for details.

What about warranty period?

We have different guarantee period for different components. please contact us for details.

What about payment terms?

We accept T/T,L/C, Alibaba trade assurance, cash

What the process to place an order? when to deliver?

Confirm the orders, pay the deposit. Arrange production (Common products without any change usually 15 to 20 days.). pay the balance, shipment.
